Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Merek: | Yaskawa | Model: | SGM-A5A312 |
|---|---|---|---|
| Jenis: | motor servo AC | Negara Asal: | Jepang |
| Kekuasaan: | 50W | Saat ini: | 0.6A |
| Kecepatan keluaran: | 3000RPM | Voltase: | 200V |
| Cahaya Tinggi: | Industrial Servo Motor 5.5KW,1500RPM Industrial Ac Servo Motor,Torque AC Industrial Servo Motors |
||

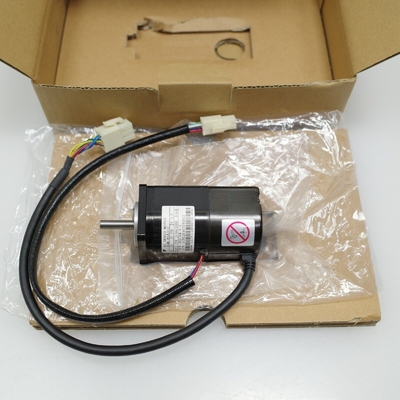

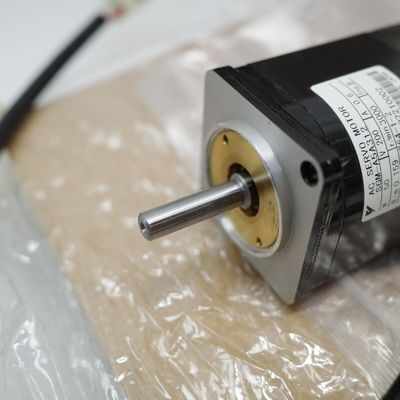

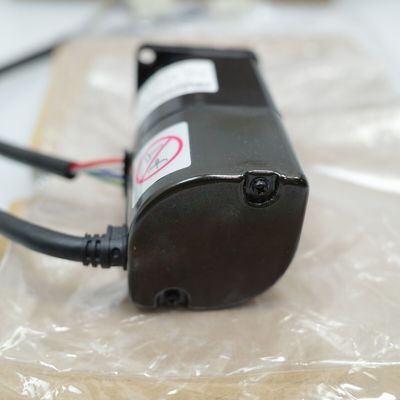

YASKAWA SGM-A5A312 AC Servo Motor 50W 0.6A 200V 3000RPM BARU
spesifikasi Dari SGM-A5A312
| Keterangan | SGM-A5A312adalah Servo Motors-AC yang diproduksi oleh Yaskawa |
| Tipe motor servo | SGM |
| Nilai Keluaran | 50W (0,07HP) |
| Sumber Daya listrik | Standar 200V |
| Spesifikasi Encoder | 2048 P/R Incremental Encoder |
| Tingkat Revisi | Spesifikasi Standar atau CE |
| Spesifikasi poros | Tegak tanpa alur pasak |
| Pilihan | Tidak ada |
SGM Dari SGM-A5A312
0.45kW hingga 15kW, Kecepatan Terukur 1.500 RPM
Motor servo SGMGH Sigma II adalah produk warisan dan tidak lagi dipromosikan di Amerika.SGMGH memiliki rotor inersia menengah dan menggabungkan desain stator tersegmentasi, yang secara dramatis mengurangi ukuran keseluruhan.
|
spesifikasi |
|||
|---|---|---|---|
|
Peringkat Waktu: |
Kontinu |
Kelembaban Sekitar: |
20 hingga 80% (tanpa kondensasi) |
|
Isolasi: |
Kelas F |
Nilai Kecepatan: |
1500rpm |
|
Getaran: |
15mm atau kurang |
Kecepatan maksimum: |
0,45 hingga 7,5kW: 3000rpm |
|
Menahan Tegangan: |
1500VAC |
Perangsangan: |
Magnet permanen |
|
Resistansi isolasi: |
Minimum 10MW pada 500VDC |
Metode Berkendara: |
Drive langsung |
|
Lampiran: |
Benar-benar tertutup, berpendingin sendiri |
Pemasangan: |
Dipasang di flensa |
|
Suhu Sekitar: |
0 hingga 40ºC |
||
FiturDari SGM-A5A312
1. Ringkas
* Motor berukuran kecil
2. Kecepatan dan akselerasi yang lebih tinggi
* Maksimum hingga 3000rpm
* Torsi tinggi untuk rasio inersia
3. Encoder
*17-bit (32.768 ppr x 4) encoder tambahan (standar)
* Encoder absolut 17-bit (opsional)
4. Peningkatan Ketahanan Lingkungan
* Benar-benar tertutup, IP67 berpendingin sendiri (tidak termasuk poros)
* Segel poros (opsional)
5. Penekanan Aplikasi
6. Standar Internasional Bersertifikat
* UL, cUL diakui (File #: E165827) Kepatuhan CE
spesifikasiDari SGM-A5A312
|
MOTOR: SGMGH- |
Output Berperingkat SGMGH |
Nilai Torsi |
Torsi Puncak Sesaat |
Nilai Saat Ini |
Arus Maksimum Sesaat |
||
|
kW (hp) |
Nm |
Lbf.in(KG.cm) |
Nm |
Lbf.in(KG.cm) |
Lengan |
Lengan |
|
|
05A*A |
0,45 (0,6) |
2.84 |
25 (29) |
8.92 |
79 (91) |
3.8 |
11 |
|
09A*A |
0,85 (1.1) |
5.39 |
48 (55) |
13.8 |
122 (141) |
7.1 |
17 |
|
13A*A |
1.3 (1.7) |
8.34 |
74 (85) |
23.3 |
207 (238) |
10.7 |
28 |
|
20A*A |
1,8 (2.4) |
11.5 |
102 (117) |
28.7 |
254 (293) |
16.7 |
42 |
|
30A*A |
2.9 (3.9) |
18.6 |
165 (190) |
45.1 |
400 (460) |
23.8 |
56 |
|
44A*A |
4.4 (5.9) |
28.4 |
252 (290) |
71.1 |
629 (725) |
32.8 |
84 |
|
55A*A |
5.5 (7.4) |
35 |
310 (357) |
87.6 |
775 (894) |
42.1 |
110 |
|
75A*A |
7,5 (10) |
48 |
425 (490) |
119 |
1053 (1210) |
54.7 |
130 |
|
1AA*A |
11 (15) |
70 |
620 (714) |
175 |
1550 (1790) |
58.6 |
140 |
|
1EA*A |
15 (20) |
95.4 |
845 (974) |
224 |
1988 (2290) |
78 |
170 |
Aplikasi:
Mesin Transfer, Mesin Pengolah Makanan, Peralatan Penanganan Material, Peralatan mesin dan mesin pertukangan, Mesin pengemas, robot Gantry, Otomatisasi pers, Thermoforming
Item panas lainnya dari seri SGMGH Sigma II ini untuk aplikasi di atas:
|
SGMGH-09ACA61 |
SGMGH-09ACA61 Motor Servo Sigma II 200V 850W Baru |
|
SGMGH-13ACA61 |
SGMGH-13ACA61 Motor Servo Sigma II 200V 1.3KW Baru |
|
SGMGH-20ACA61 |
SGMGH-20ACA61 Motor Servo Sigma II 200V 2KW Baru |
|
SGMGH-20ACA6C |
SGMGH-20ACA6C Sigma II Servo Motor 200V 2KW dengan rem 24VDC Baru |
|
SGMGH-30ACA6C |
SGMGH-30ACA6C Sigma II Servo Motor 200V 3KW Baru dengan rem 24VDC Baru |
